"A design token is a decision, recorded once, in a form both people and machines can read."

Overview

Invisible Technologies' product UI runs on Tailwind and shadcn, but its design tokens were a thin, hand maintained layer with no primitive or semantic structure. We rebuilt the token foundation in Figma and wired it to code, so the system has a real architecture that stays in sync and reads the same in design and development.

Objectives

• A two layer model: raw primitives and property scoped semantic roles
• Tokens native to Tailwind v4 and shadcn compatible
• Figma as the single source of truth, mirrored to code automatically
• Zero drift between what designers name and what developers write

The Problem

The tokens were an ad hoc bridge. Hand written CSS variables mapped to shadcn names, which mapped to Tailwind, with no separation of raw values from roles and dimensions hardcoded across components. Adding a color or retuning a scale meant editing many files, and design and code drifted apart.

Approach: Figma inside Claude Code

The entire build ran inside Claude Code connected to Figma over MCP. Claude read and wrote Figma variables directly, generated the token pipeline, and checked every decision against live Tailwind and shadcn documentation. Each design choice and its code output stayed in one loop.

Two Layers: Primitives to Semantic

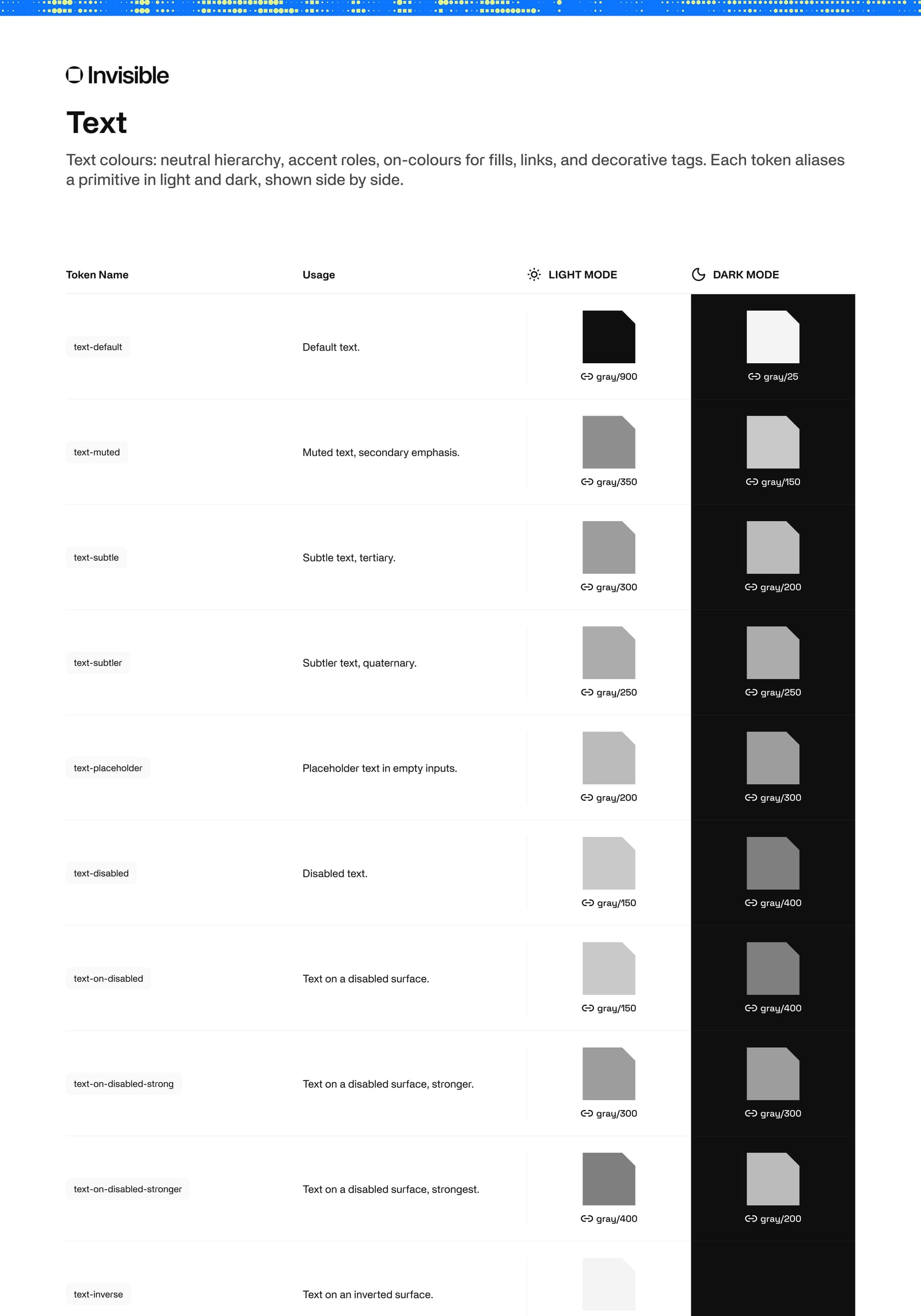

Primitives are the raw, hidden palette and scales that developers never touch. Semantic tokens are property scoped roles that alias them, covering background, text, border, icon and focus ring in both light and dark. Teams use the roles, never the raw values.

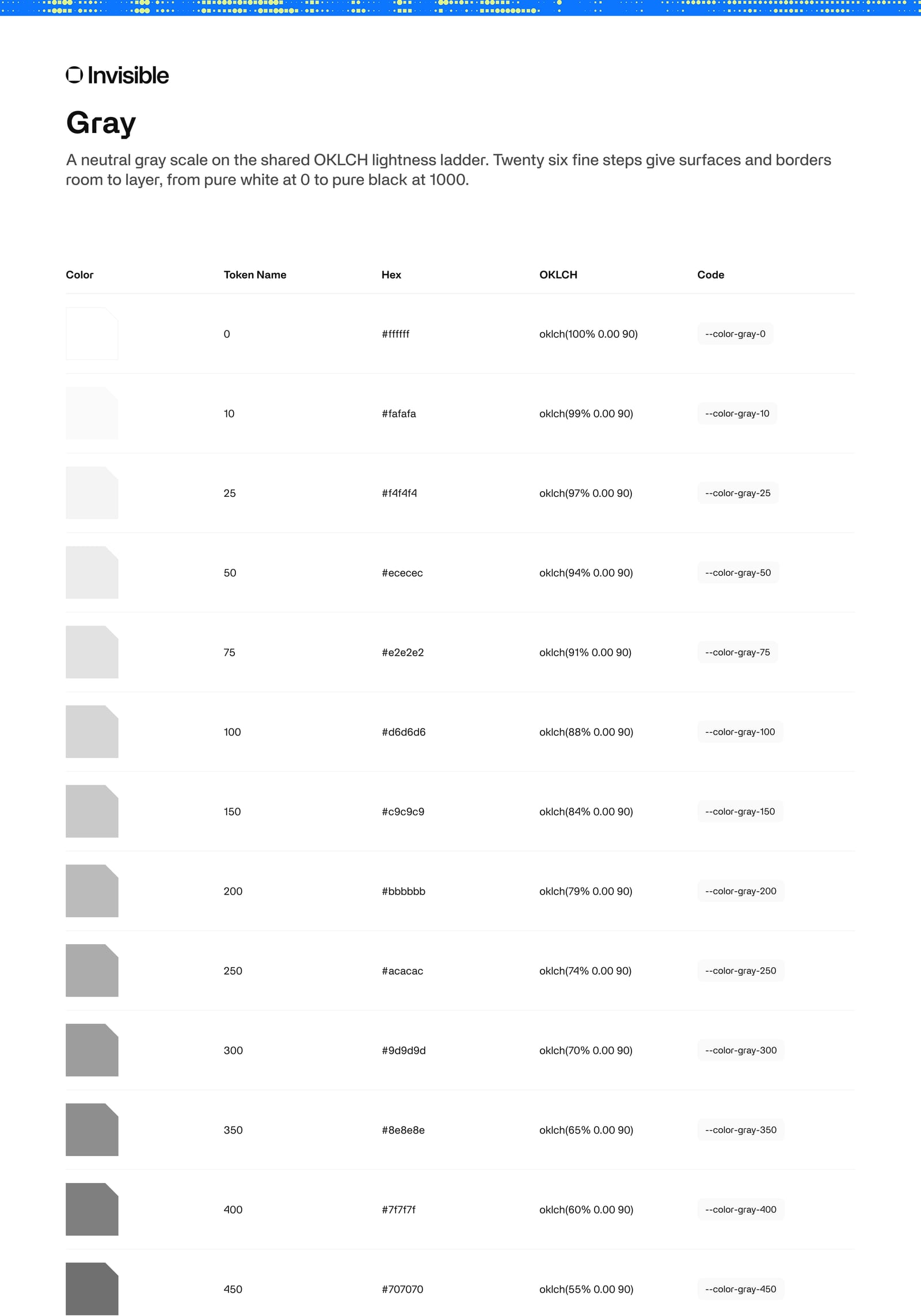

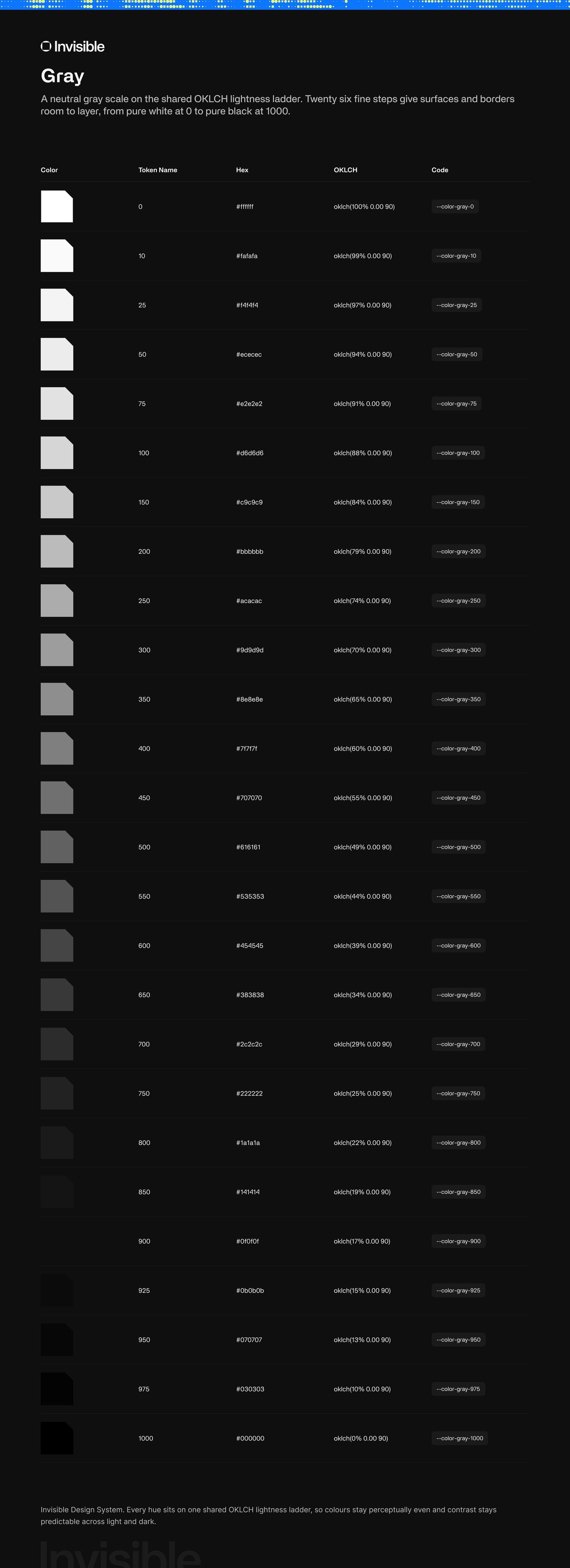

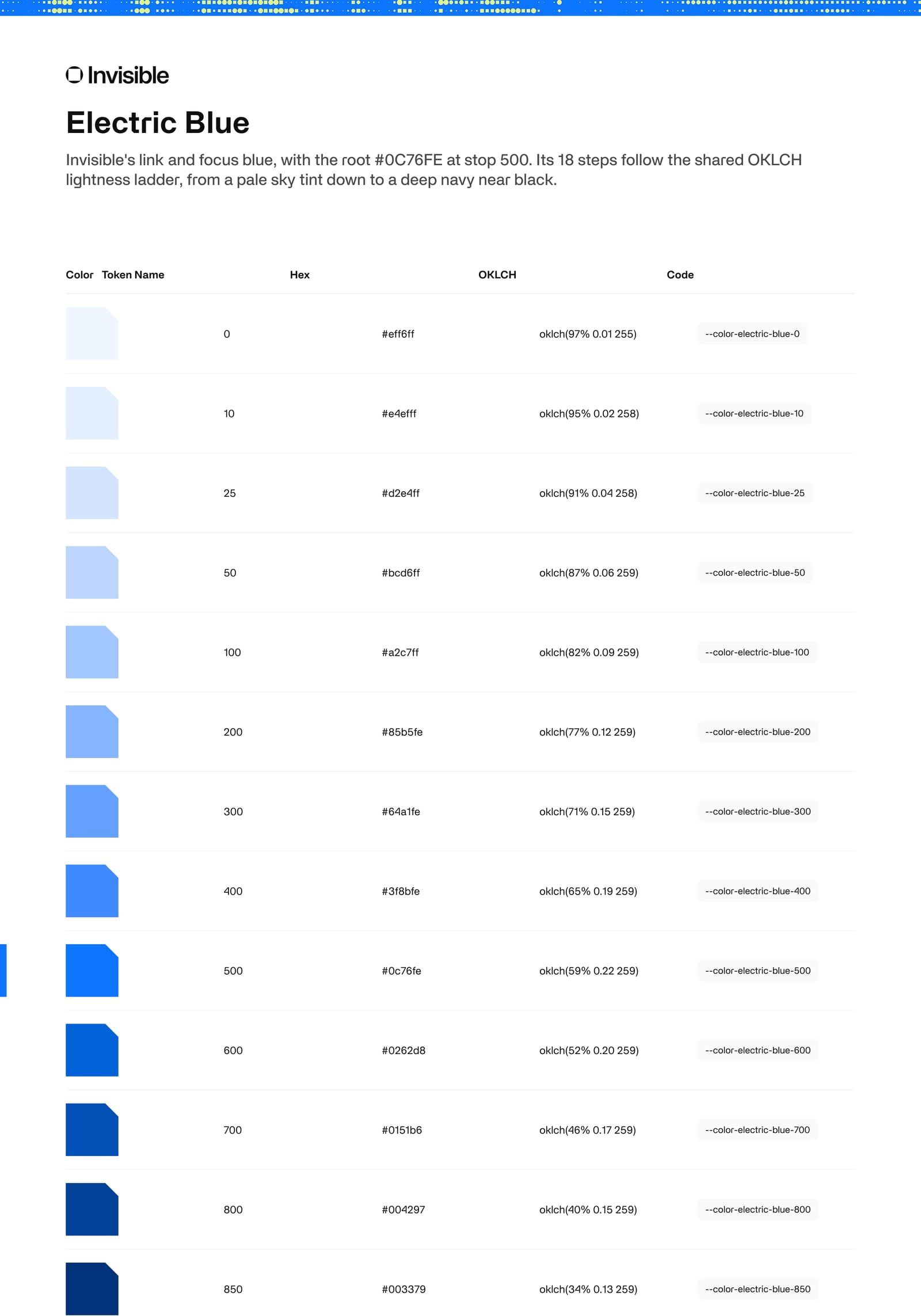

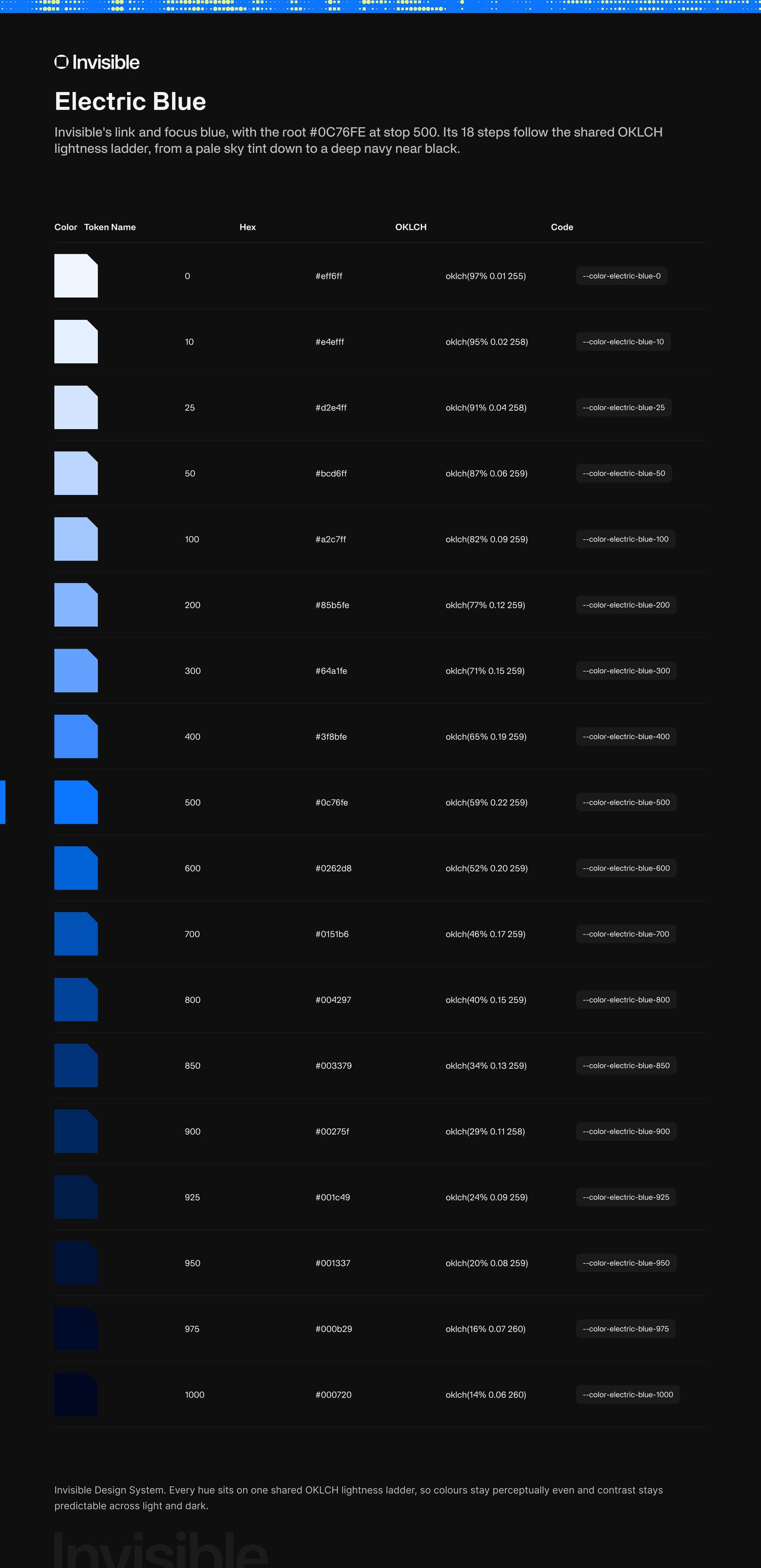

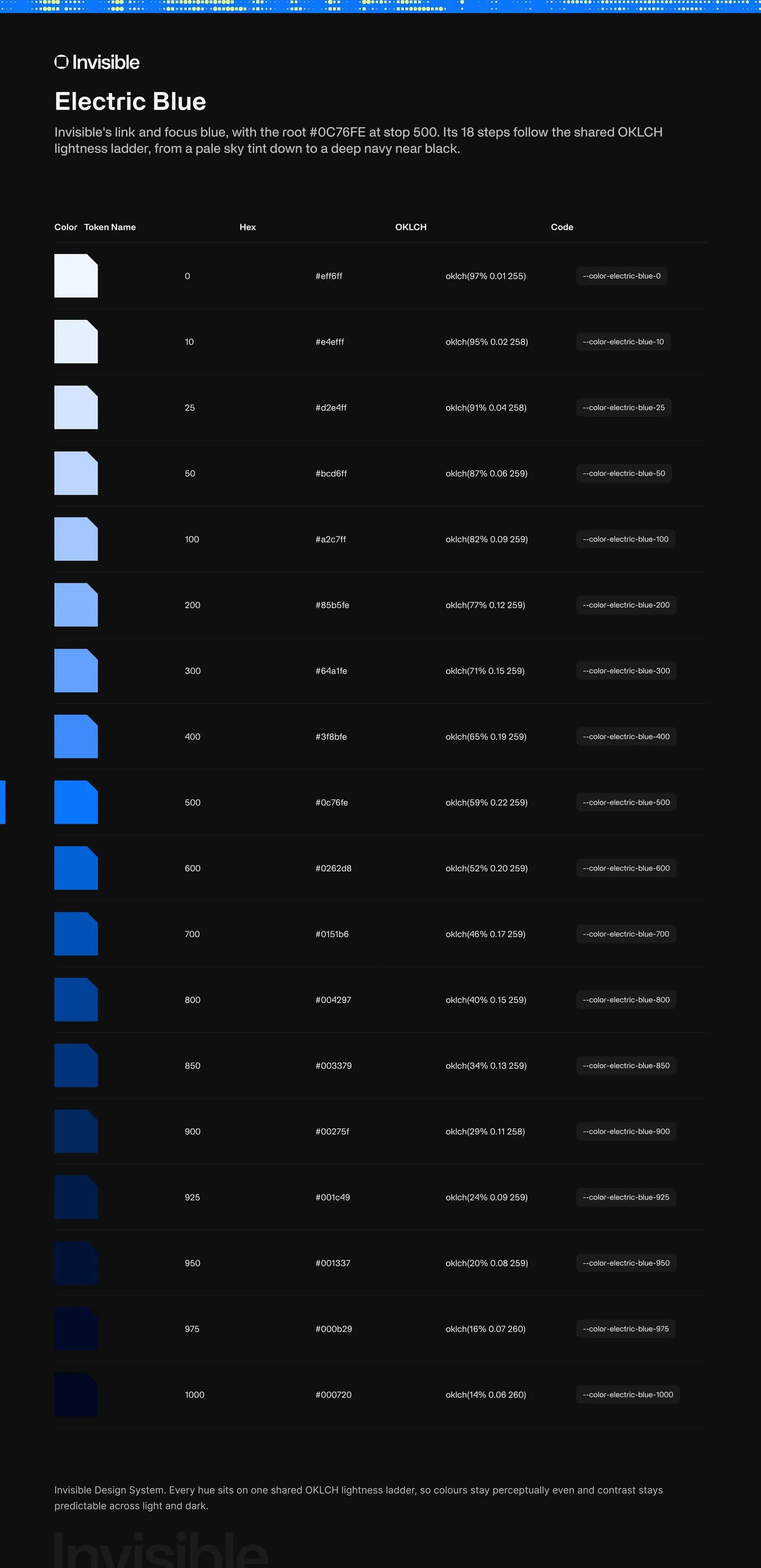

Underneath them sits the palette itself, where neutrals and brand hues are built by the same recipe so every ramp steps in the same places.

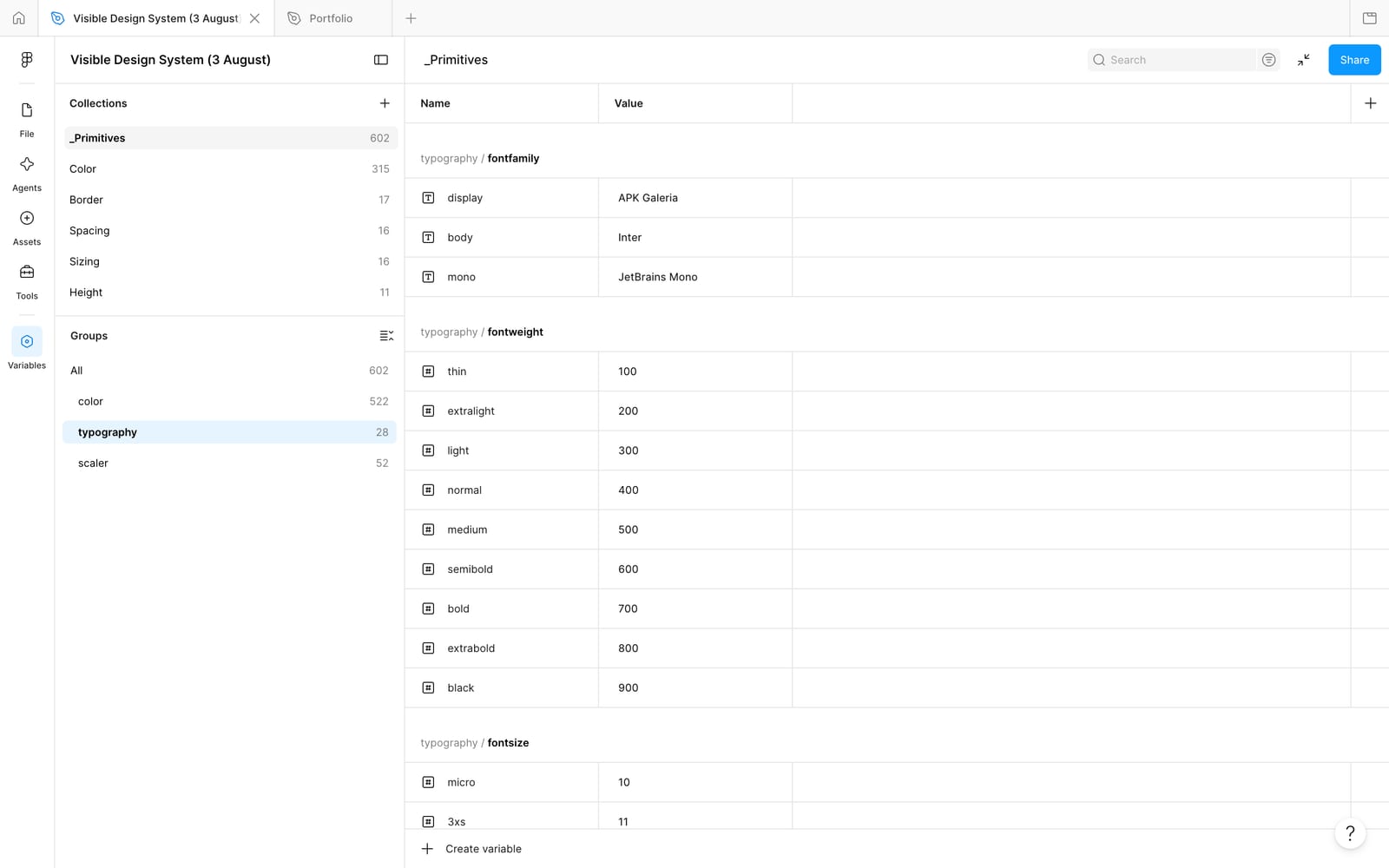

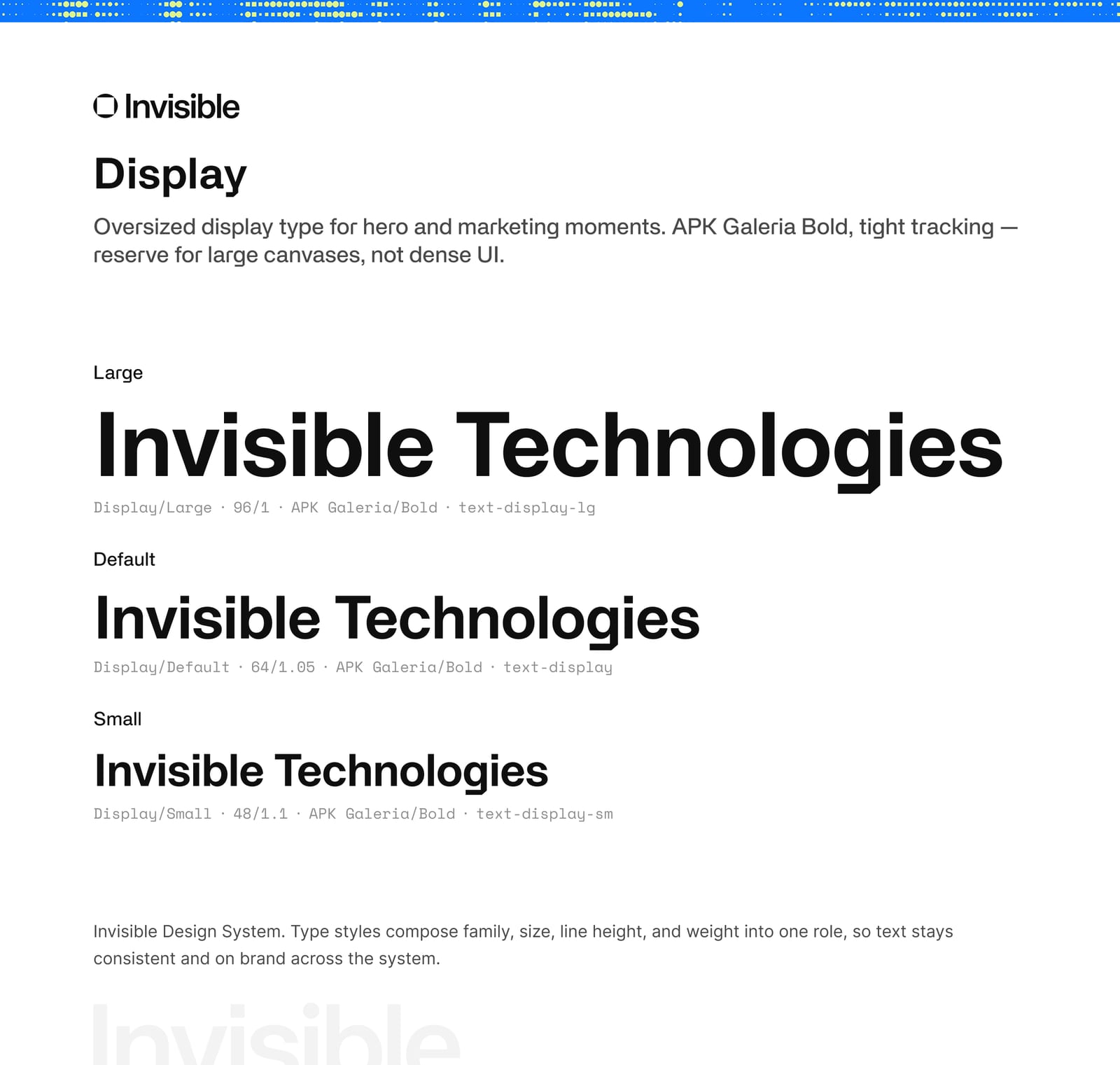

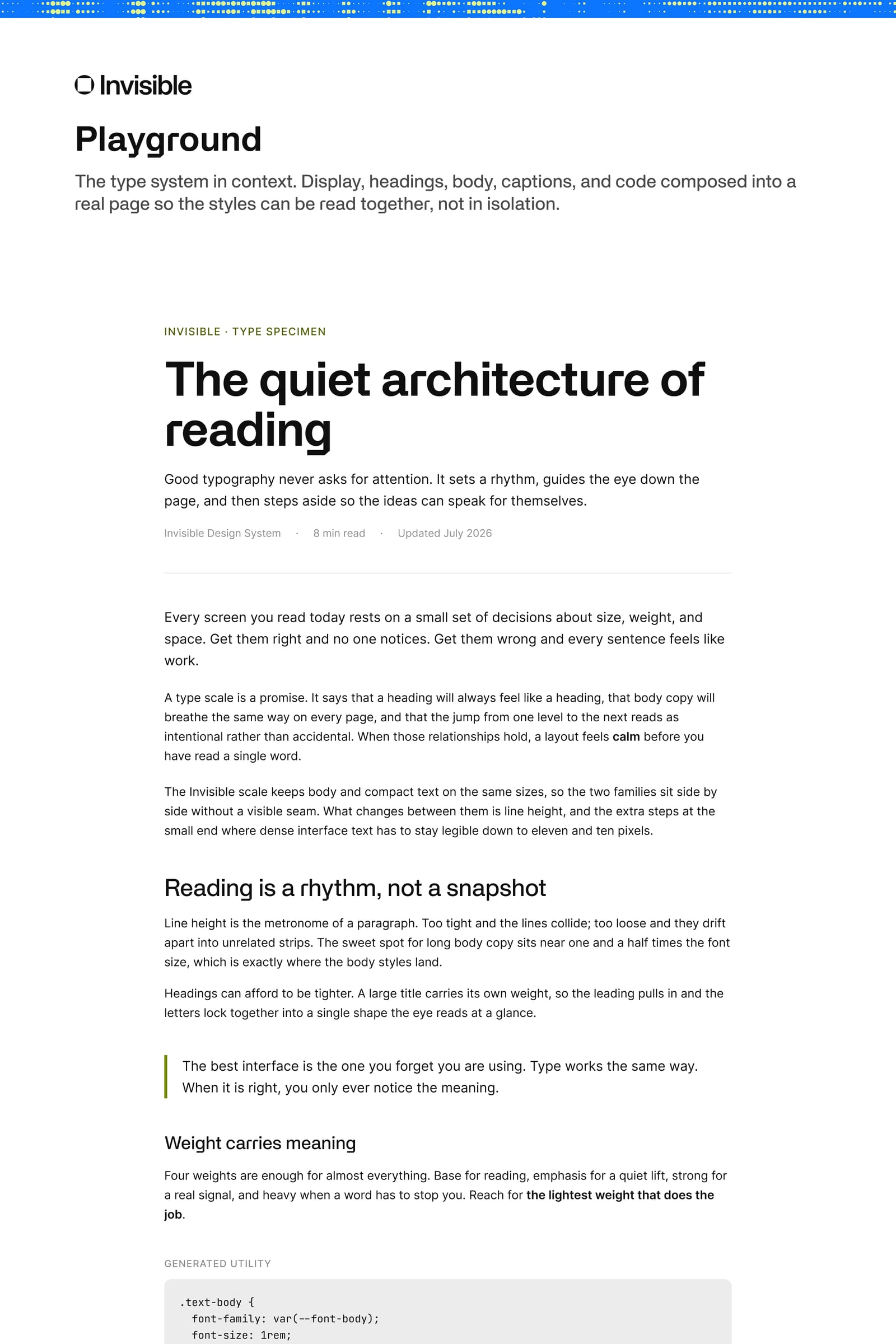

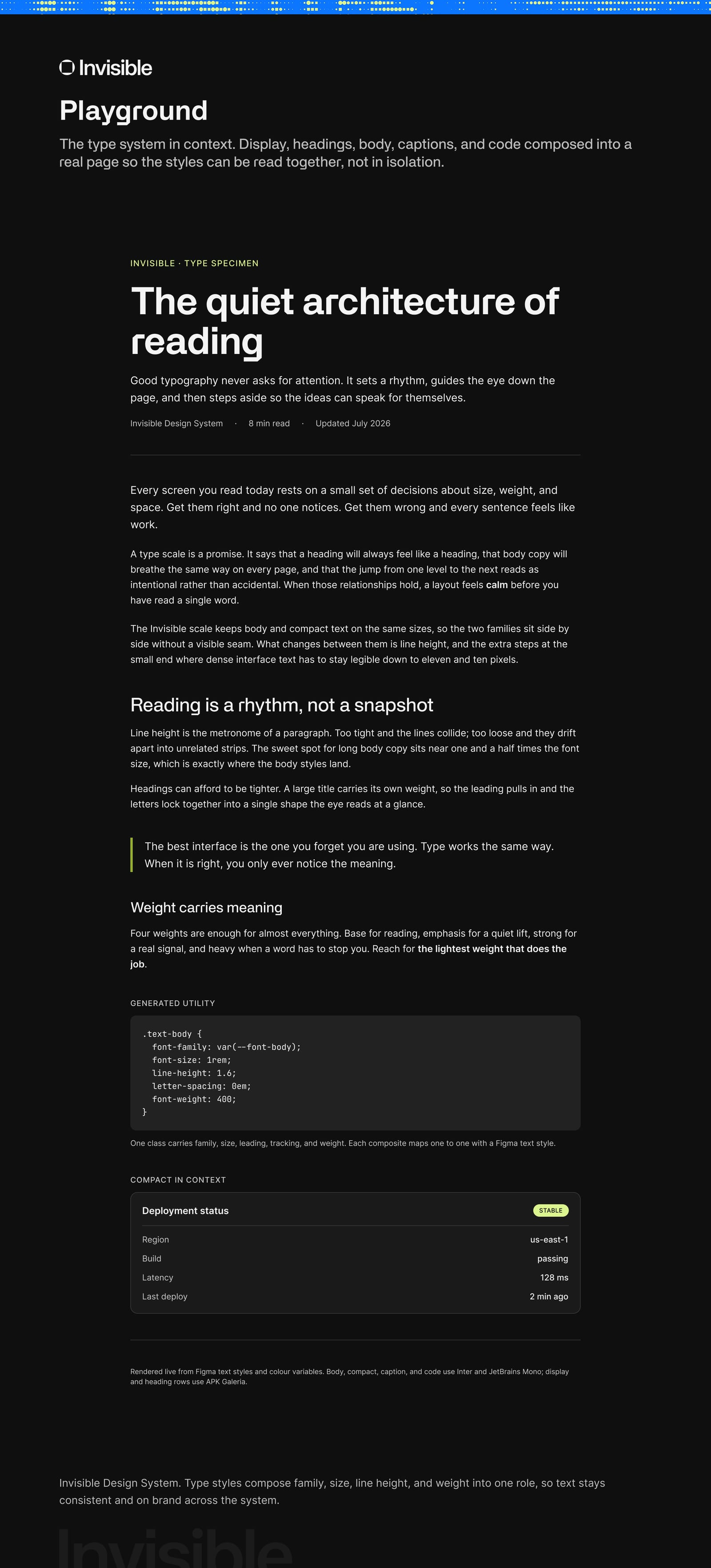

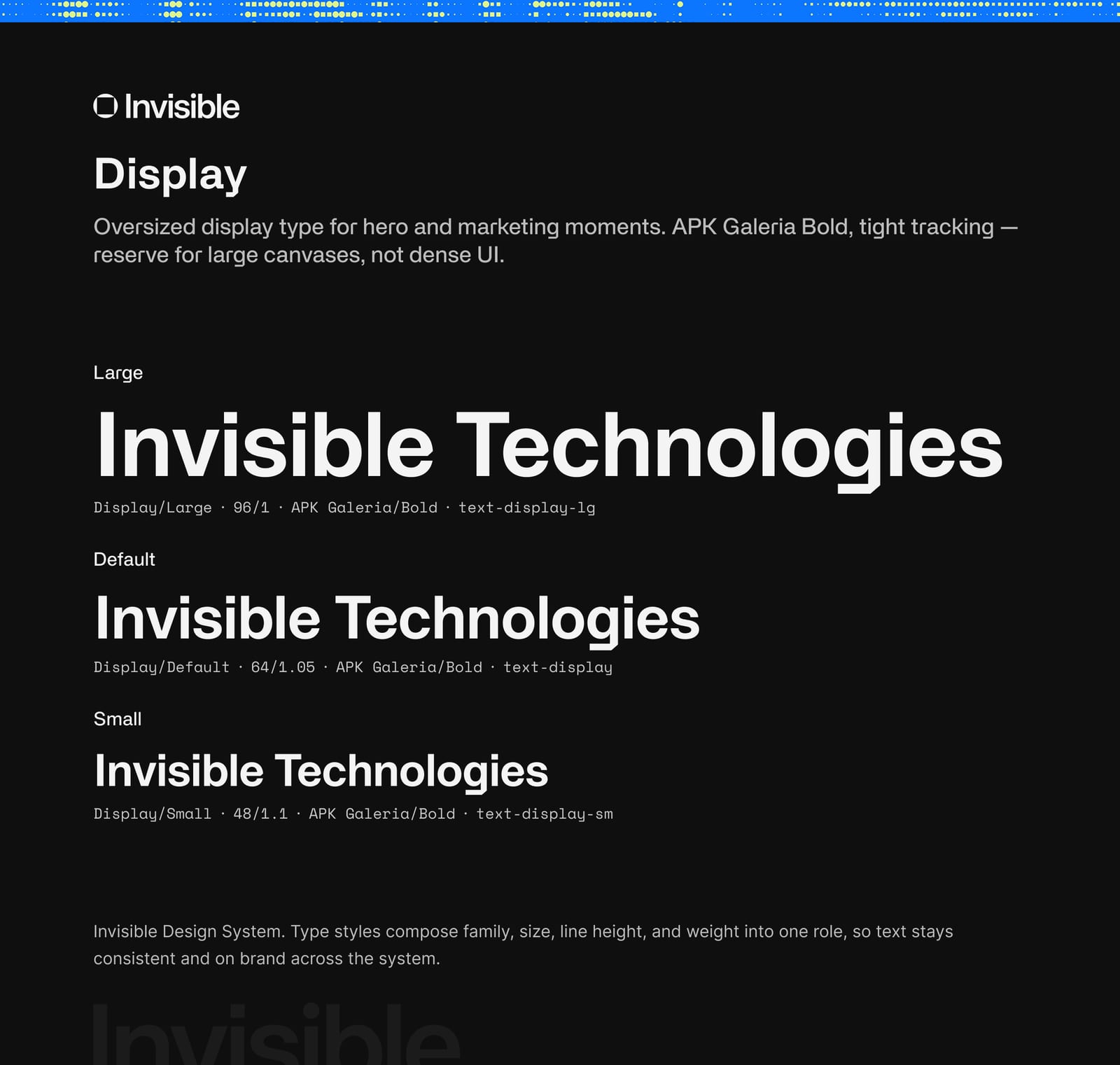

The type scale follows the same logic. Font families, weights and sizes live as primitives, and each role composes them into a single class.

The Core Problem, and the @utility Solution

Tailwind v4's --color-* namespace generates every property from one value, which breaks a property scoped system where primary is one color as a background, another as text, and another as a border. We pivoted to a custom @utility per role, emitting bg-primary, text-primary and border-primary from separate values. This was the key move that let a semantic system live natively in Tailwind.

Dimension Tokens

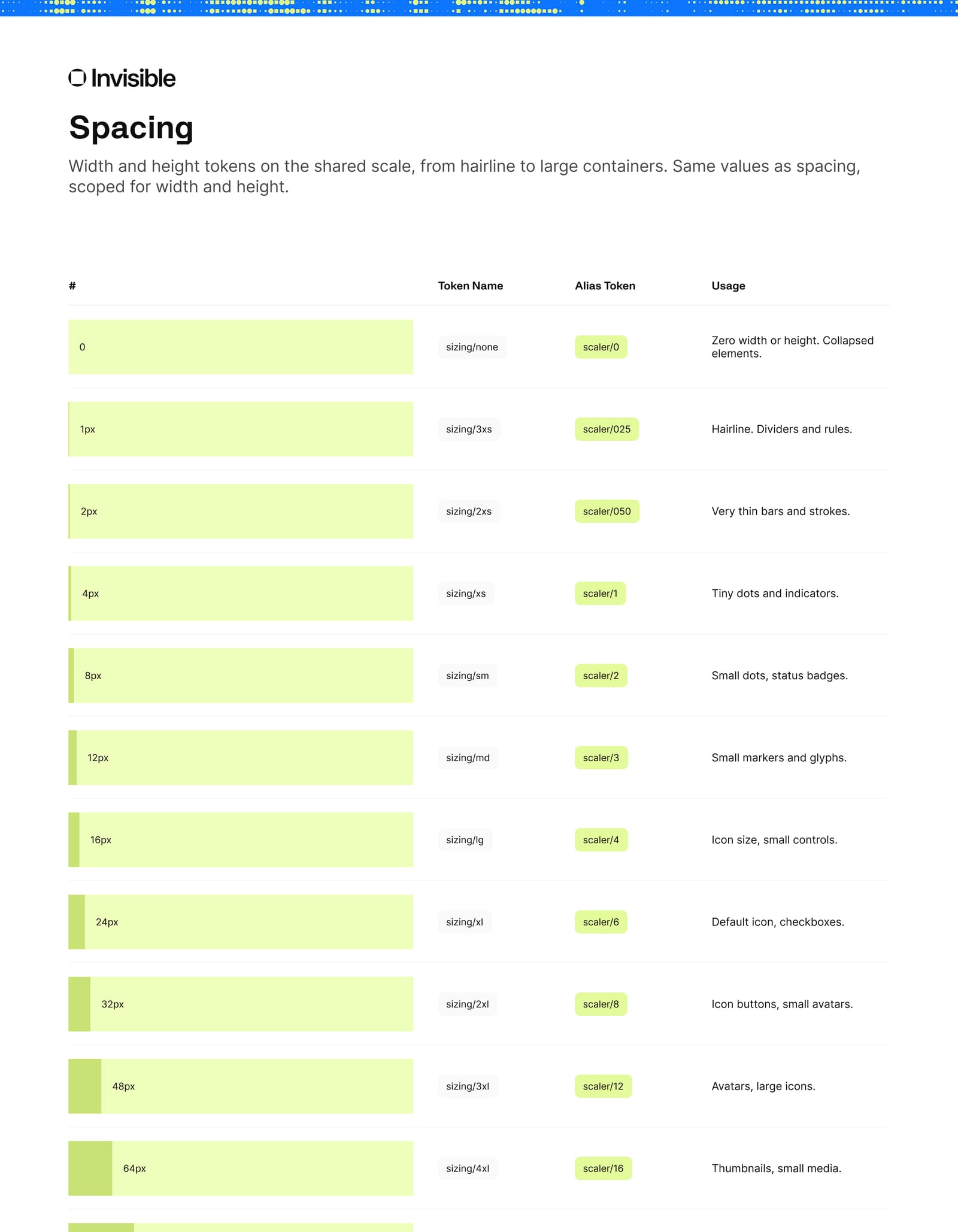

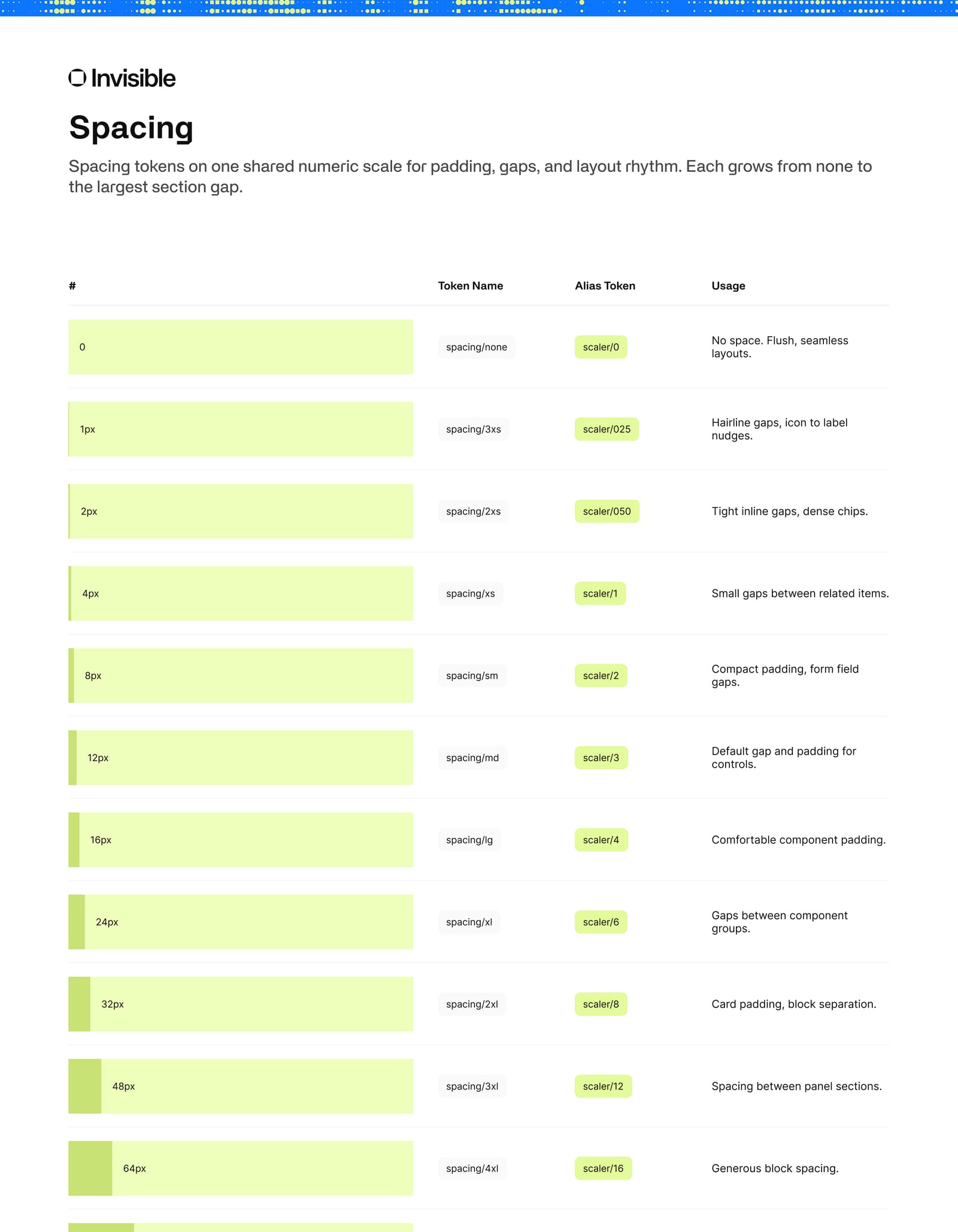

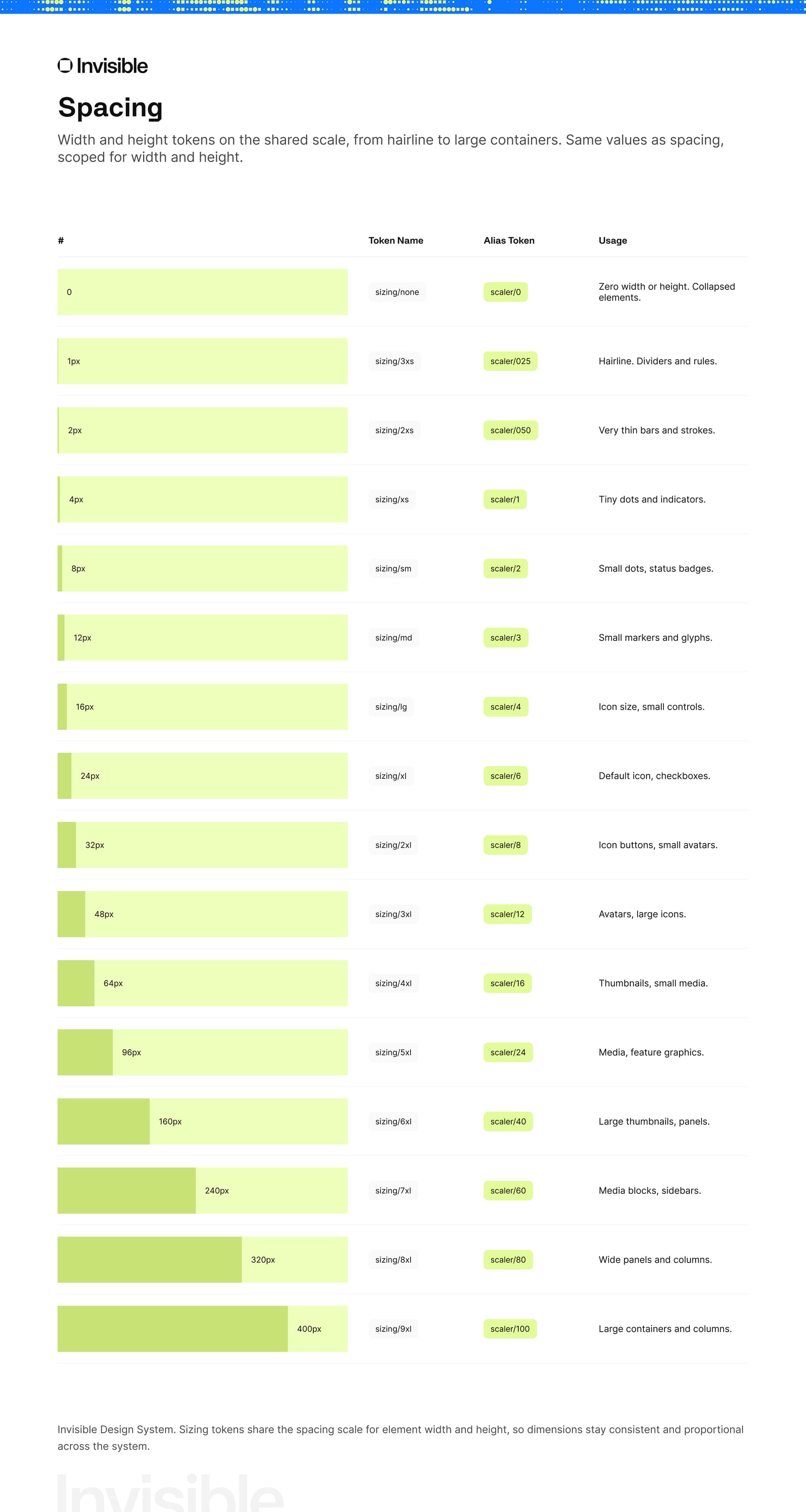

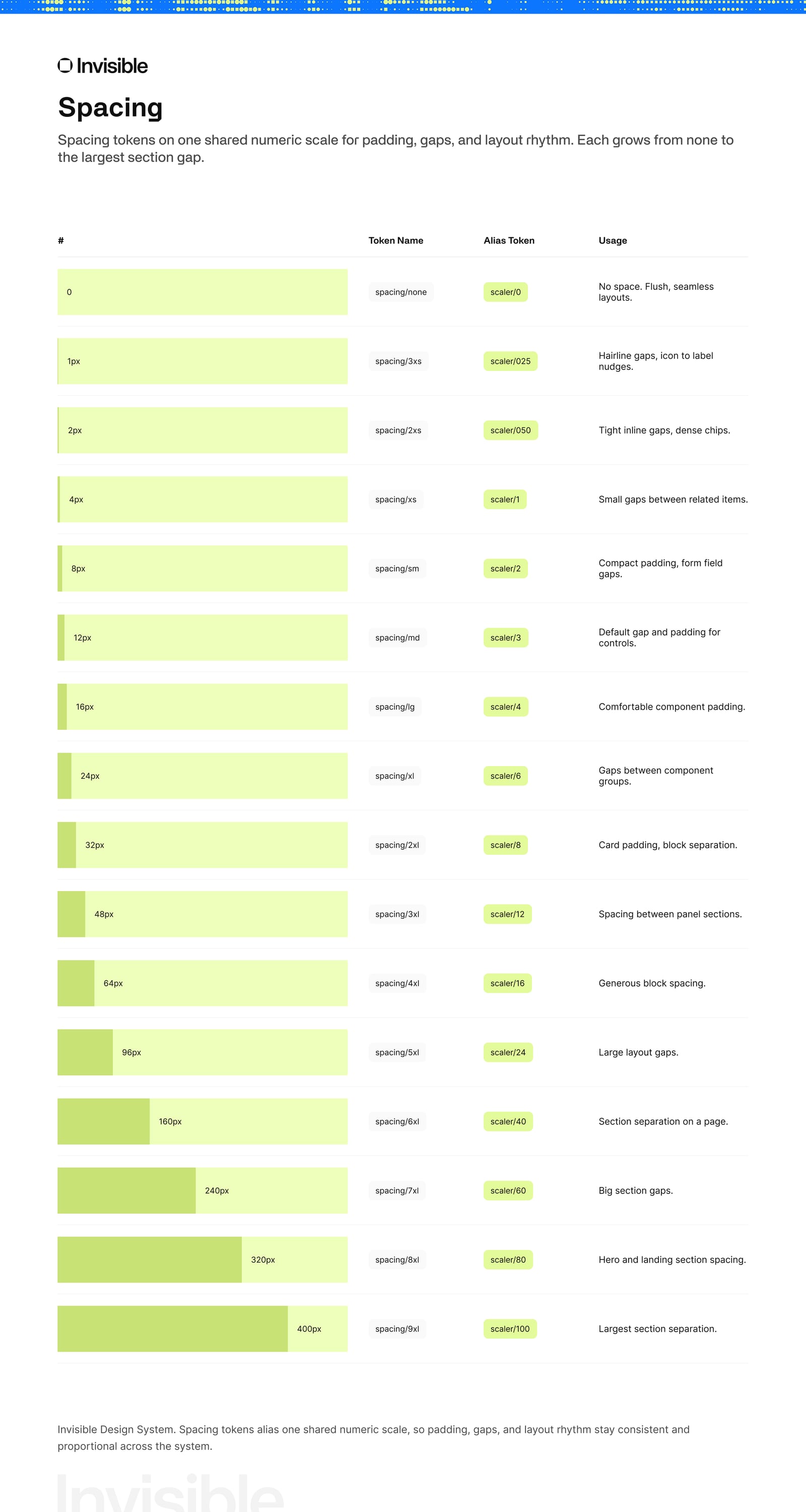

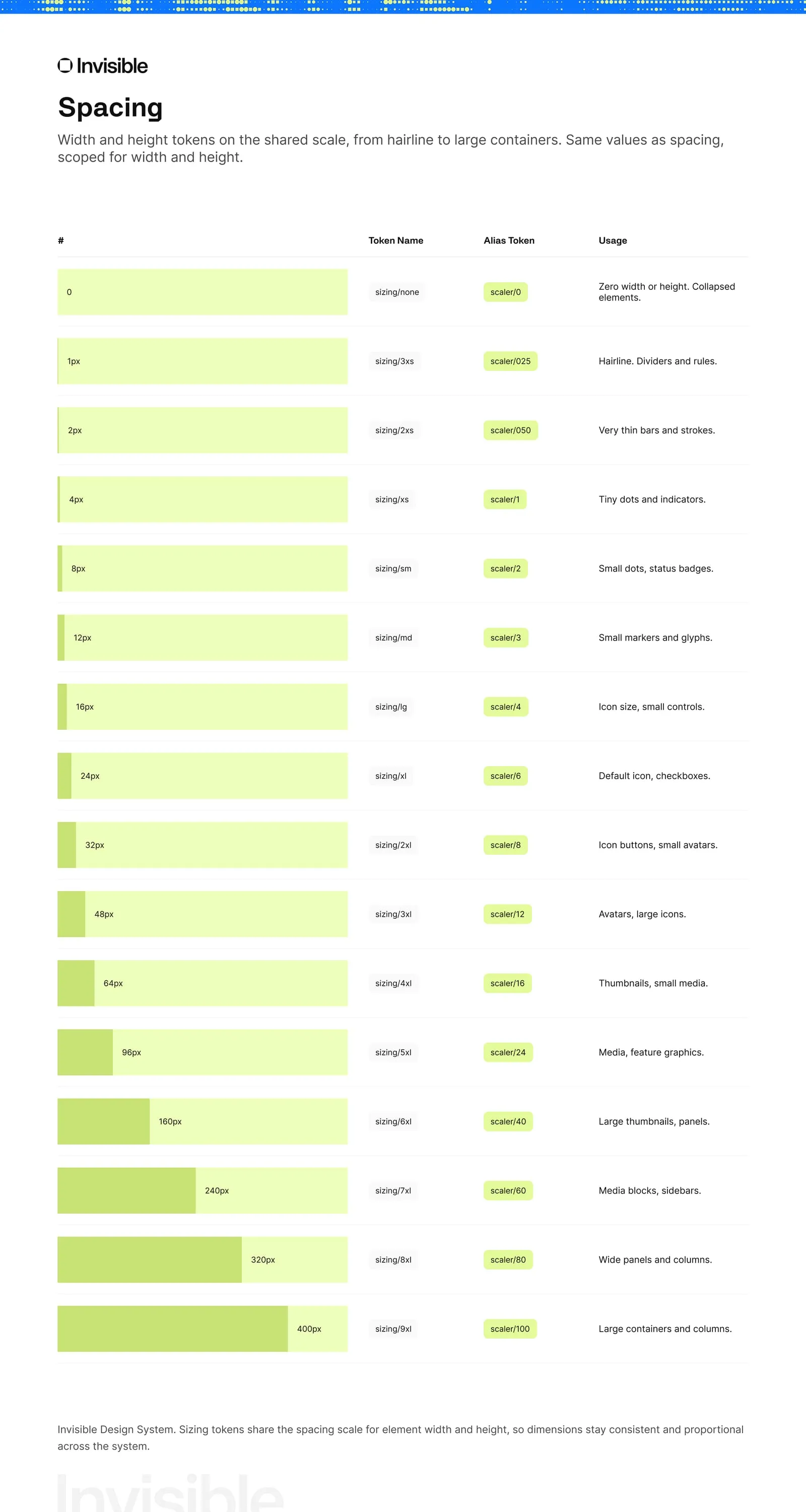

One hidden numeric scale, the scaler, feeds every dimension family through aliases: spacing, sizing, radius, border width and control height. Unlike color these are not property scoped, so they emit as native Tailwind @theme and let Tailwind generate the utilities itself. A single spacing token produces around eighty five padding, margin, gap and sizing classes on its own.

No Drift Between Design and Code

Every Figma token name matches its Tailwind class. radius/md is rounded-md, width/2 is border-2, and the sm control height carries the code syntax h-9. Designer and developer share one vocabulary, and Dev Mode shows the exact class next to each token.

The Pipeline

Figma variables are mirrored into a versioned DTCG tokens.json by build scripts, then a generator emits Tailwind CSS, DTCG, flat JSON and plain CSS, with a validator enforcing the locked rules on every change. Change a token in Figma, re sync, and the code regenerates.

Each family takes a different route out of the generator, and that routing is the architecture in one view:

Only color and typography need a custom utility, because only they are property scoped. Everything else lives in a real Tailwind namespace, or needs no output at all because our name is already Tailwind's name.

Living Documentation

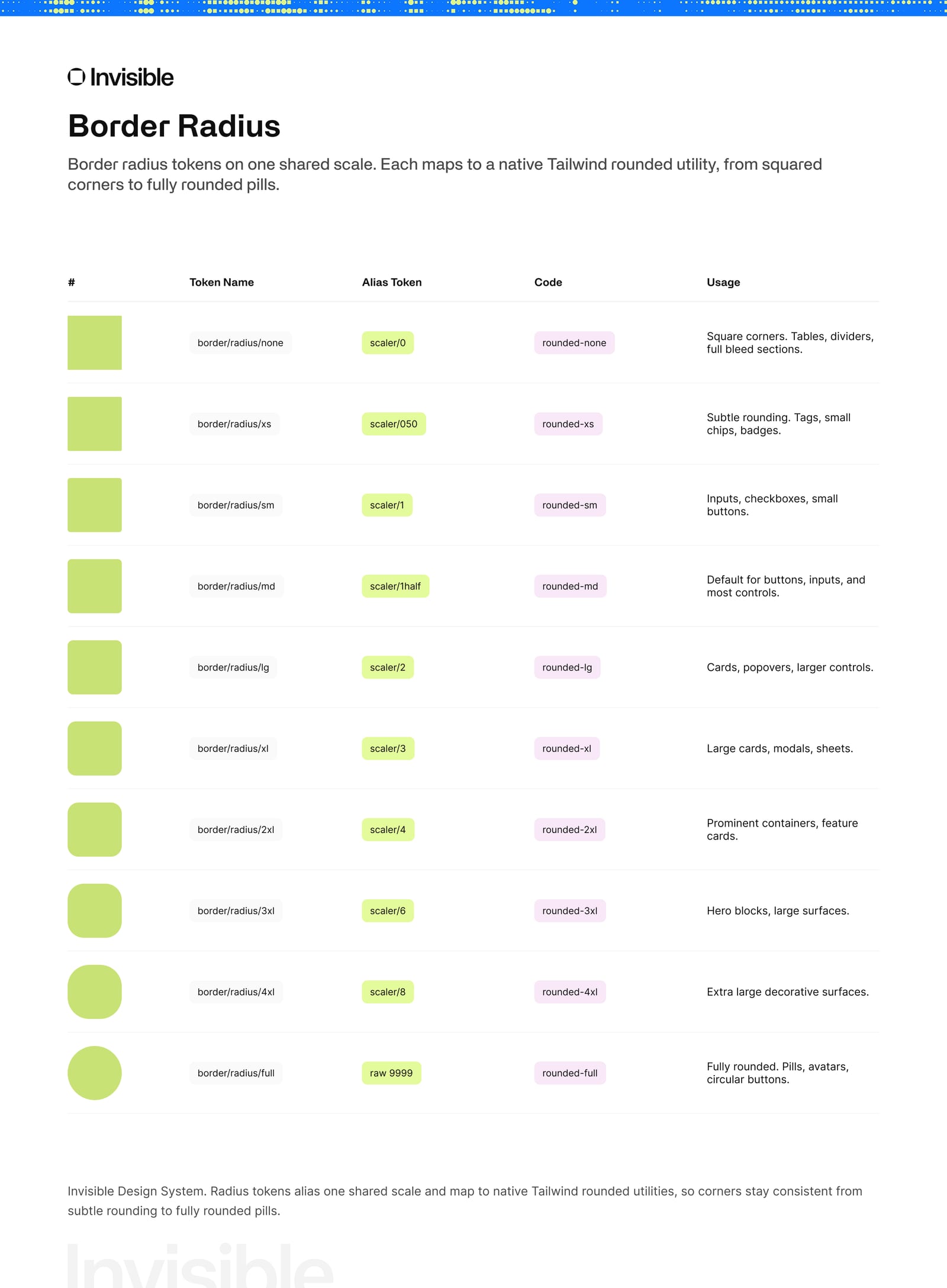

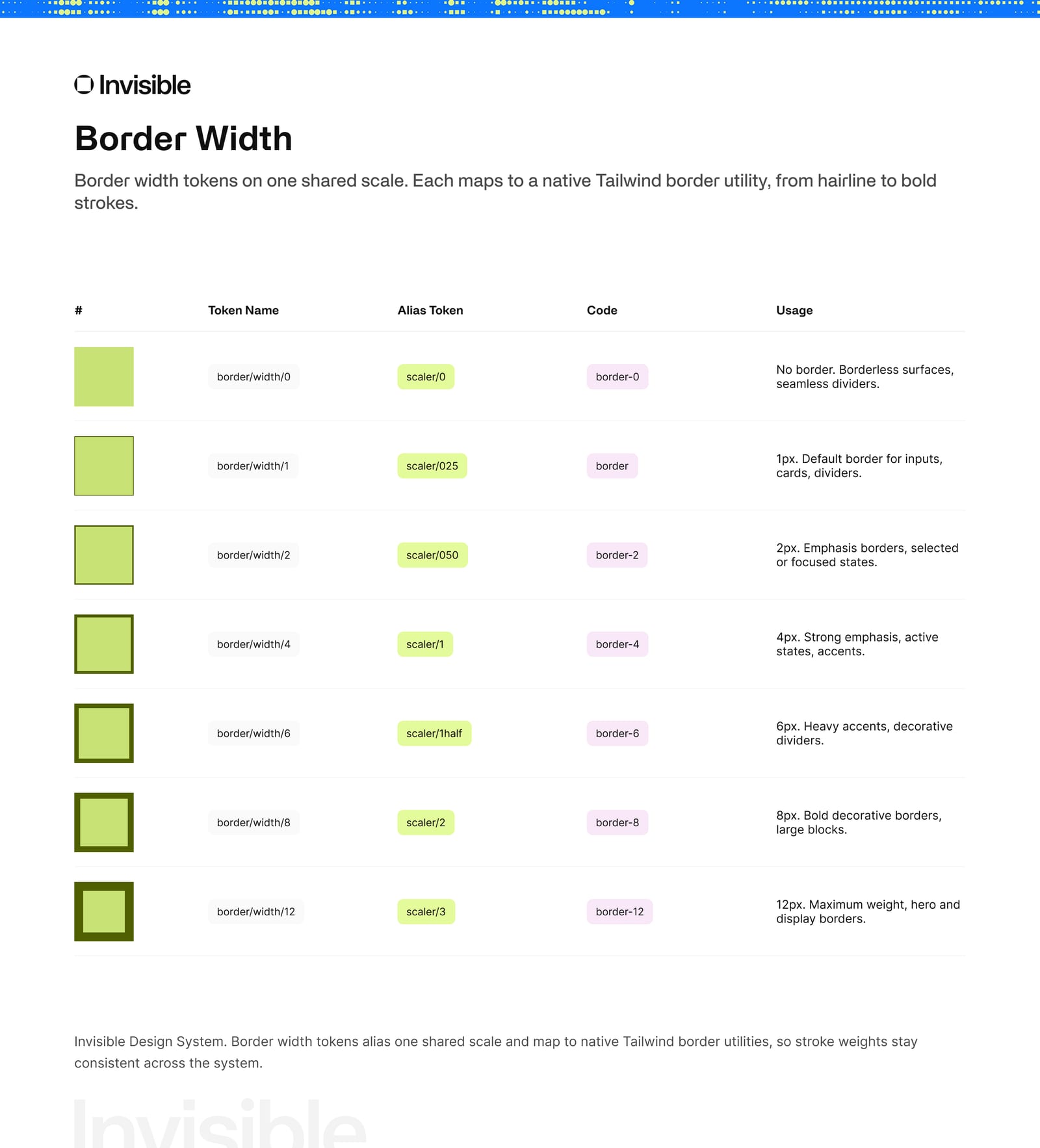

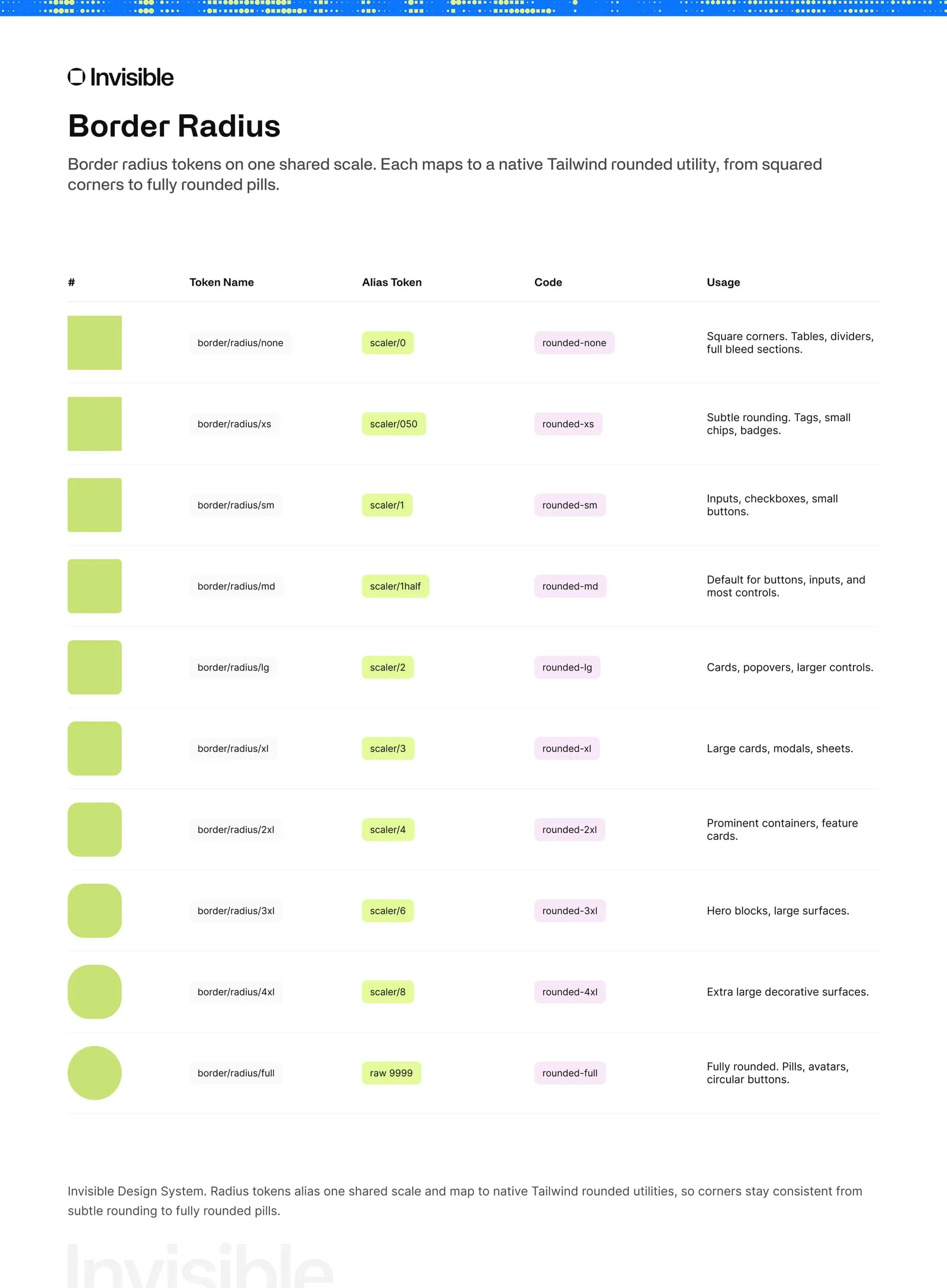

Every token family has a showcase sheet in Figma that renders the tokens in use, from color ramps and radius swatches to spacing bars and control heights, with the exact class beside each one. The documentation and the specification are the same artifact.

Challenges

The hard part was never picking colors. It was making the names survive contact with Tailwind. A semantic layer wants to read like intent, primary, subtle, on-primary, but every one of those names also has to become a class that Tailwind will generate and does not already own.

Three collisions set the rules. background/primary/default drops its trailing default and becomes bg-primary, yet text/default and border/default have to keep theirs, because a bare text clashes with Tailwind's own text utilities and a bare border is already its border width utility. Foregrounds went through two rejected schemes before landing: a -foreground suffix that only repeated what the text/ group already said, and a mid-string primary-on-subtle that left "on" ambiguous. We settled on on- as a prefix, so it always reads one way. In typography a size step is always Default and never Medium, so a size can never be mistaken for a weight inside a composite class.

@utility is what made the semantic layer expressible at all, and we took its cost openly. A custom utility does not get Tailwind's /opacity modifier unless it is authored with the --value() syntax, so transparency lives in explicit alpha tokens instead. Every one of these was settled against what the framework actually does, checked with live builds rather than preference.

Conclusion

The system now has a real spine: a hidden primitive scale, property scoped semantic roles, and an honest two way mapping to Tailwind and shadcn. Designers pick meaningful tokens, developers write native classes, and the two never disagree. The foundation is documented, versioned, and ready for the component library.
